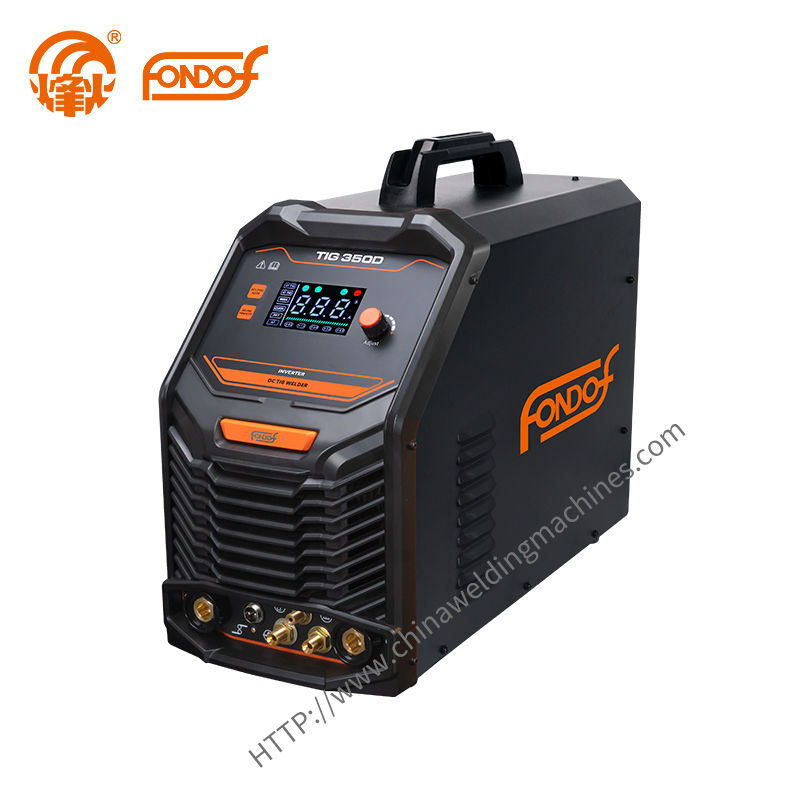

TIG 350D
TIG 350D
With TIG /MMA function ,
With LED screen display , all functions visible ,intelligent control in one step ,
The recommend welding thickness appears as you adjust the current.
TIG mode with 2T/4T function to reduce the intensity of continuous work.
TIG mode with adjustable gas post-flow time to prevent porosity at the weld end.
MMA mode With adjustable Arc force to ensure smoothly welding ,
MMA mode with ANTI-STICK to prevents rod sticking for just smooth welding.
MMA mode with VRD function to ensure operation safety
Stable output, Perfect welding seam ,
LED panel as below :
| Parameters | TIG 350D |
| Rated Input Voltage(V) | 3PH380 |
| Power Frequency(Hz) | 50/60 |
| Rated Input Current(A) | 17.0TIG) 18.4(MMA) |
| Rated Input Power(KVA) | 11.1(TIG) 12.1(MMA) |
| Rated No-load Voltage(V) | 84 |
| Welding Current(A) | TIG:15～350 MMA:15～300 |
| Gas Post-flow Time(S) | 1~10 |
| Arc start Current(A) MMA | 0-50 |
| Rated Duty Cycle%(40℃) | TIG :35/MMA:40 |
| Insulation Grade | F |
| Protection Class | IP21S |
| Dimensions(mm) | 550X235X430 |
| Weight(kg) | 17.2 |
