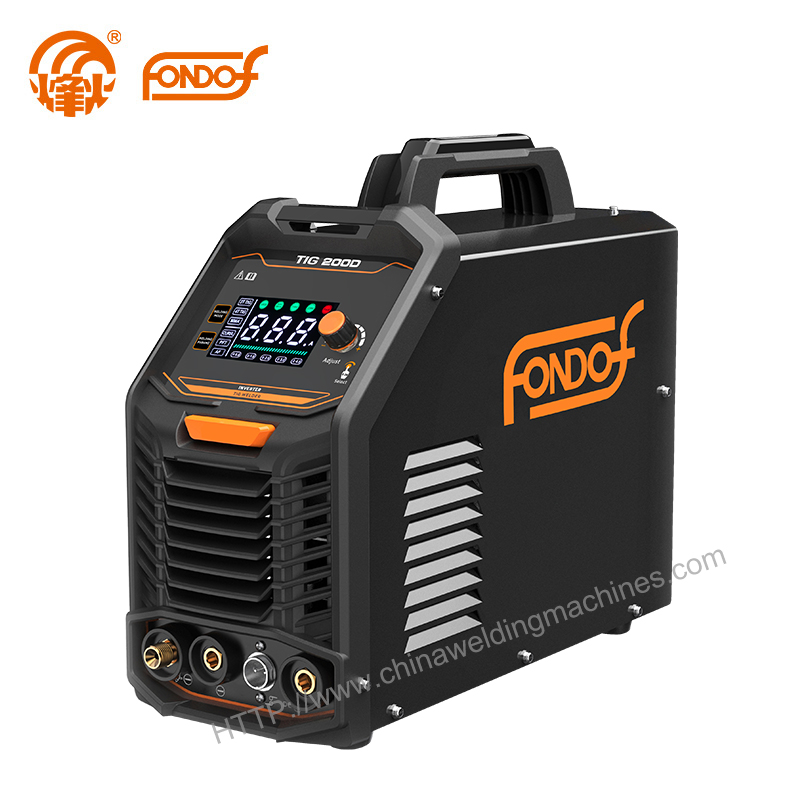

TIG 200D
TIG 200D
With TIG /MMA function ,
With LED screen display , all functions visible ,intelligent control in one step ,
The recommend welding thickness appears as you adjust the current.
TIG mode with 2T/4T function to reduce the intensity of continuous work.
TIG mode with adjustable gas post-flow time to prevent porosity at the weld end.
MMA mode With adjustable Arc force to ensure smoothly welding ,
MMA mode with ANTI-STICK to prevents rod sticking for just smooth welding.
MMA mode with VRD function to ensure operation safety
Stable output, Perfect welding seam

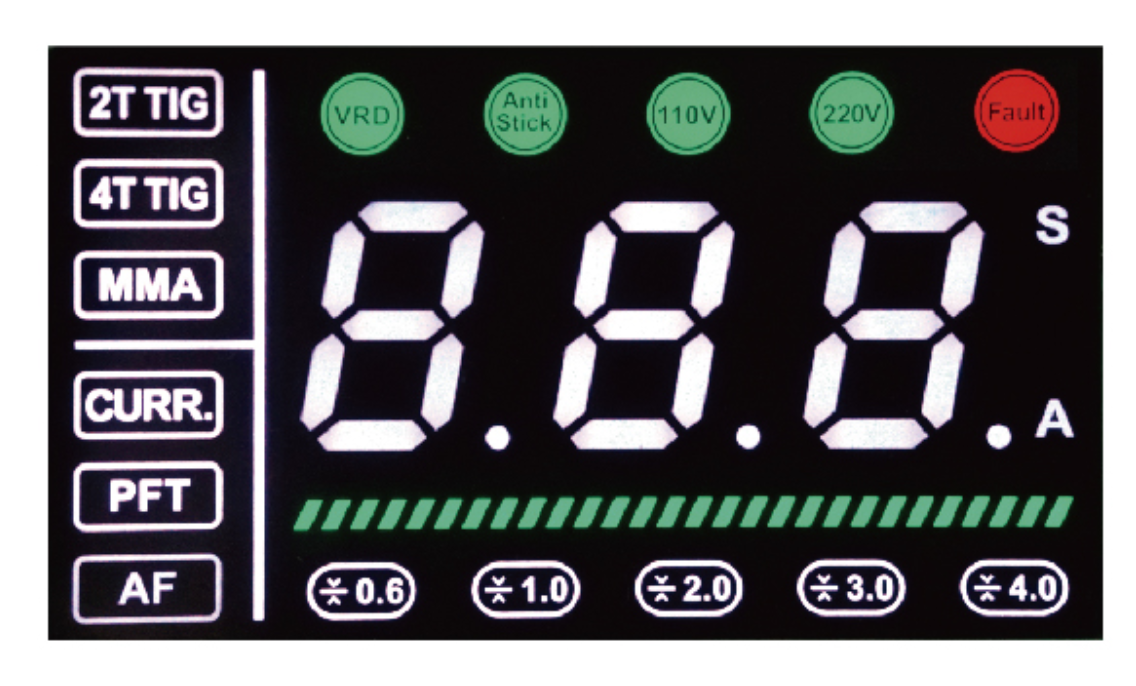

LED panel as below :
| Parameters | TIG 200D |
| Input Voltage (V) | AC220V |
| Frequency (Hz) | 50/60 |
| Phase | 1 |
| Rated Input Current (A) | TIG :29 , MMA :27 |
| Rated Input Power (KVA) | TIG :6.4,MMA :5.9 |
| No-load Voltage (V) | 53 |
| Welding Current (A) | TIG:15~200,MMA :15~160 |
| Welding voltage(V) | TIG:10.6~18,MMA :20.6~26.4 |
| Rated Duty Cycle(%) 40℃ | 20% |
| Insulation Grade | F |
| Protection Class | IP21S |
| Cooling | Air |
| Dimension(mm) | 400*185*360 |
| Weight(Kg) | 8.5 |
