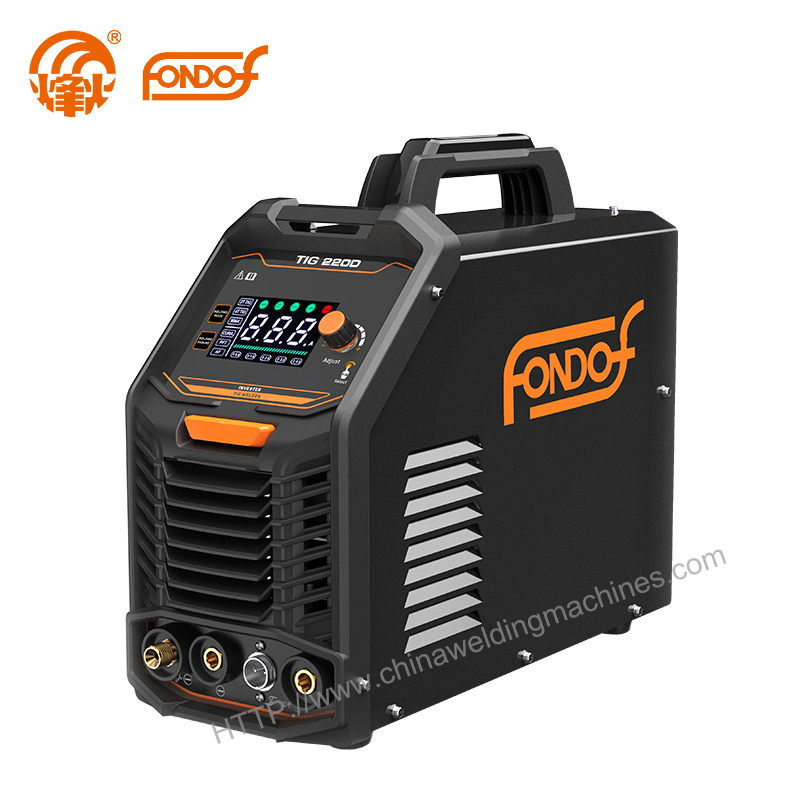

TIG 220D
TIG 220D
With TIG /MMA function ,
With LED screen display , all functions visible ,intelligent control in one step ,
The recommend welding thickness appears as you adjust the current.
TIG mode with 2T/4T function to reduce the intensity of continuous work.
TIG mode with adjustable gas post-flow time to prevent porosity at the weld end.
MMA mode With adjustable Arc force to ensure smoothly welding ,
MMA mode with ANTI-STICK to prevents rod sticking for just smooth welding.
MMA mode with VRD function to ensure operation safety
Stable output, Perfect welding seam ,

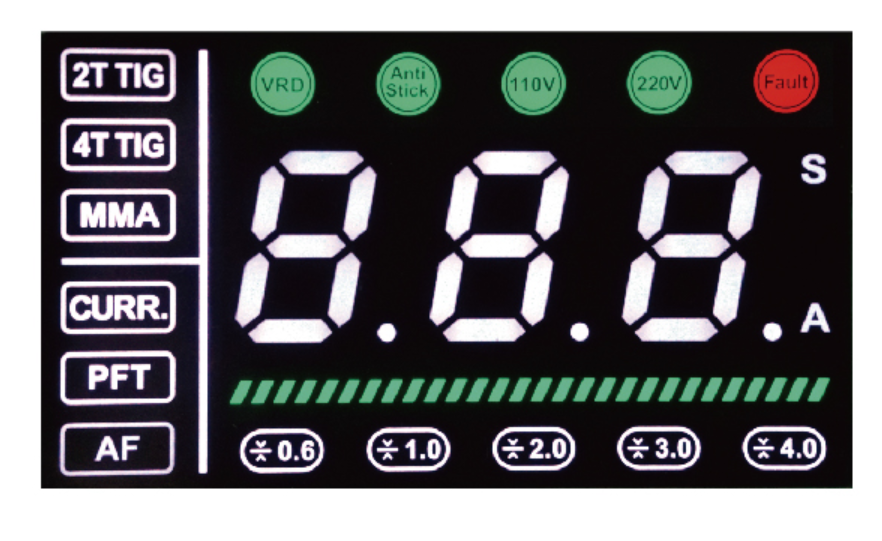

LED panel as below :
| Parameters | TIG 220D |
| Input Voltage (V) | AC220V |
| Frequency (Hz) | 50/60 |
| Phase | 1 |
| Rated Input Current (A) | TIG :36,MMA :33 |
| Rated Input Power (KVA) | TIG :7.9,MMA:7.3 |
| No-load Voltage (V) | 54 |
| Welding Current (A) | TIG:15-220,MMA:15~180 |
| Welding voltage(V) | TIG :10.6~18.8,MMA:20.6~27.2 |
| Rated Duty Cycle(%) 40℃ | 25% |
| Insulation Grade | F |
| Protection Class | IP21S |
| Cooling | Air |
| Dimension(mm) | 400*185*360 |
| Weight(Kg) | 8.7 |
