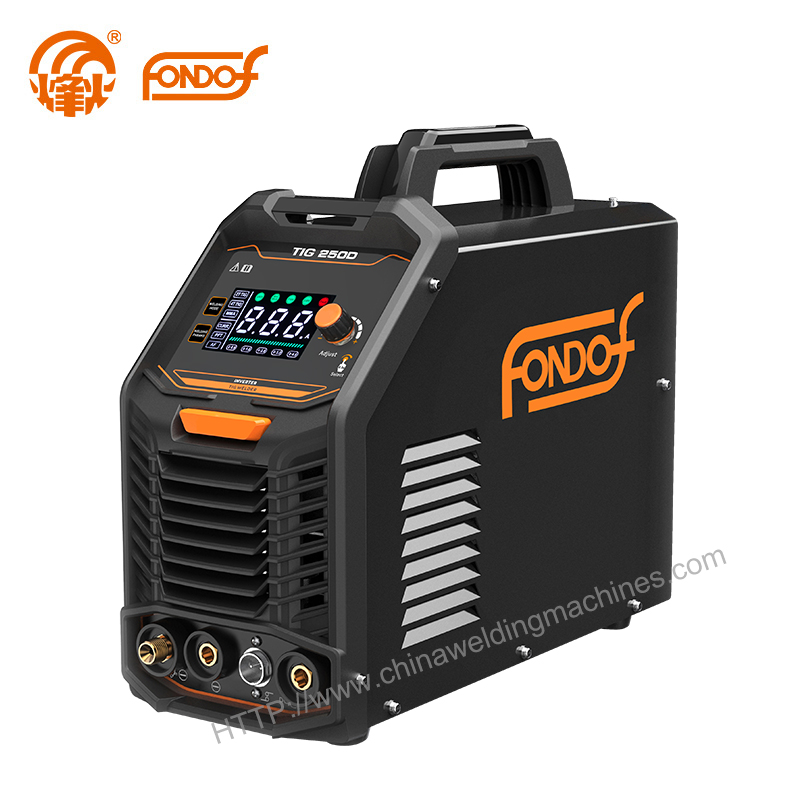

TIG 250D(DV)
TIG 250D(DV)
Dual voltage TIG machine ,
Suit for 1PH-220V&3PH-380V ,
With TIG /MMA function ,
With LED screen display , all functions visible ,intelligent control in one step ,
The recommend welding thickness appears as you adjust the current.
TIG mode with 2T/4T function to reduce the intensity of continuous work.
TIG mode with adjustable gas post-flow time to prevent porosity at the weld end.
MMA mode With adjustable Arc force to ensure smoothly welding ,
MMA mode with ANTI-STICK to prevents rod sticking for just smooth welding.
MMA mode with VRD function to ensure operation safety
Stable output, Perfect welding seam ,

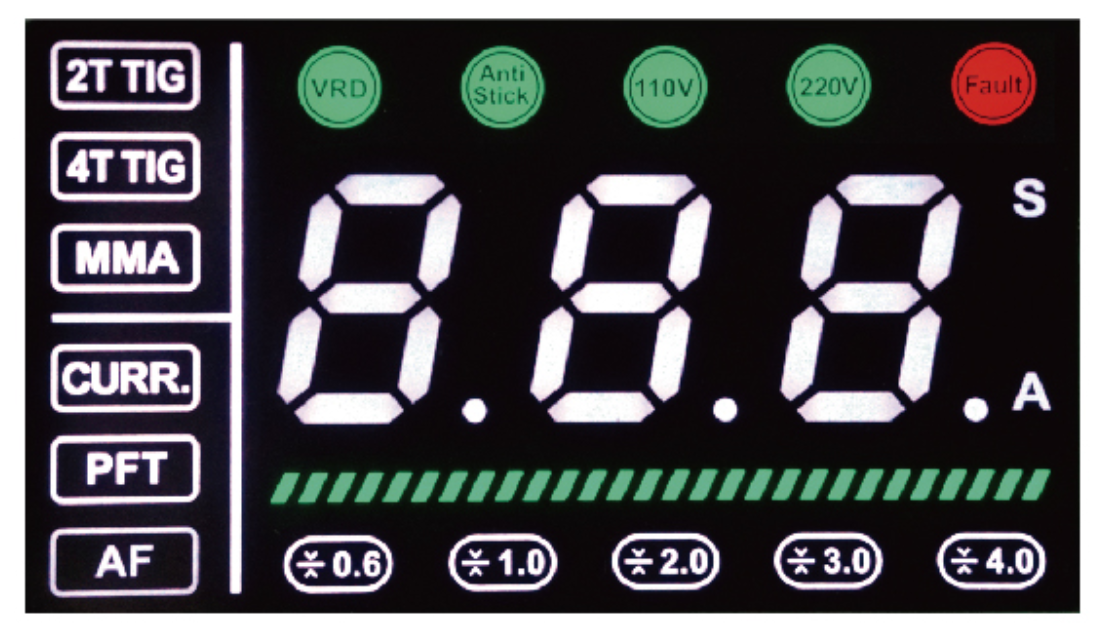

LED panel as below :
| Parameters | TIG 250D(DV ) | |
| Input Voltage (V) | AC 220V | AC380V |
| Frequency (Hz) | 50/60 | 50/60 |
| Phase | 1 | 3 |
| Rated Input Current (A) | TIG :29,MMA:34 | TIG :10,MMA:10 |
| Rated Input Power (KVA) | TIG :6.4,MMA:7.5 | TIG :6.6,MMA:6.6 |
| No-load Voltage (V) | 79 | 70 |
| Welding Current (A) | TIG:15-220,MMA:15~180 | TIG:15-250,MMA:15~200 |
| Welding voltage(V) | TIG :10.6~18.8,MMA:20.6~27.2 | TIG :10.6~20,MMA:20.6~28 |
| Rated Duty Cycle(%) 40℃ | TIG:50% MMA:60% | TIG:50% MMA:100% |
| Insulation Grade | F | |
| Protection Class | IP21S | |
| Cooling | Air | |
| Dimension(mm) | 450X190X380 | |
| Weight(Kg) | 11.1 | |
