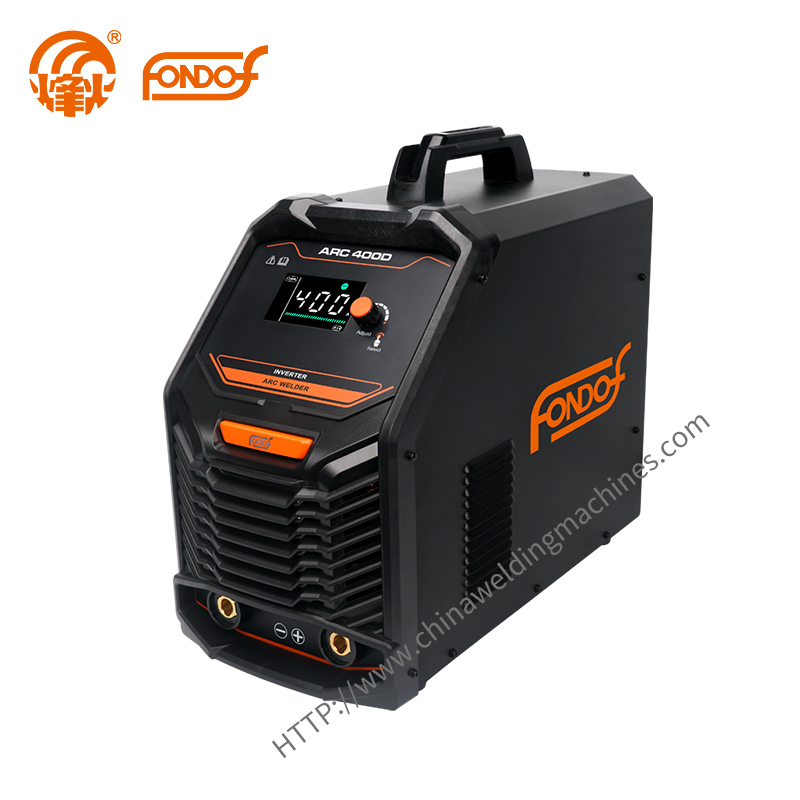

ARC 400D
ARC 400D
Dual IGBT module inverter
Industrial level
Real 400A output
With LED screen display , all functions visible ,intelligent control in one step ,
The ideal rod diameter appears as you adjust the current.
With adjustable Arc force to ensure smoothly welding ,
With adjustable hot start to ensure smoothly arc ignition,
With ANTI-STICK to prevents rod sticking for just smooth welding.
With VRD function to ensure operation safety
Stable output, Perfect welding seam ,
Weldable acid、alkaline and cellulose electrodes.

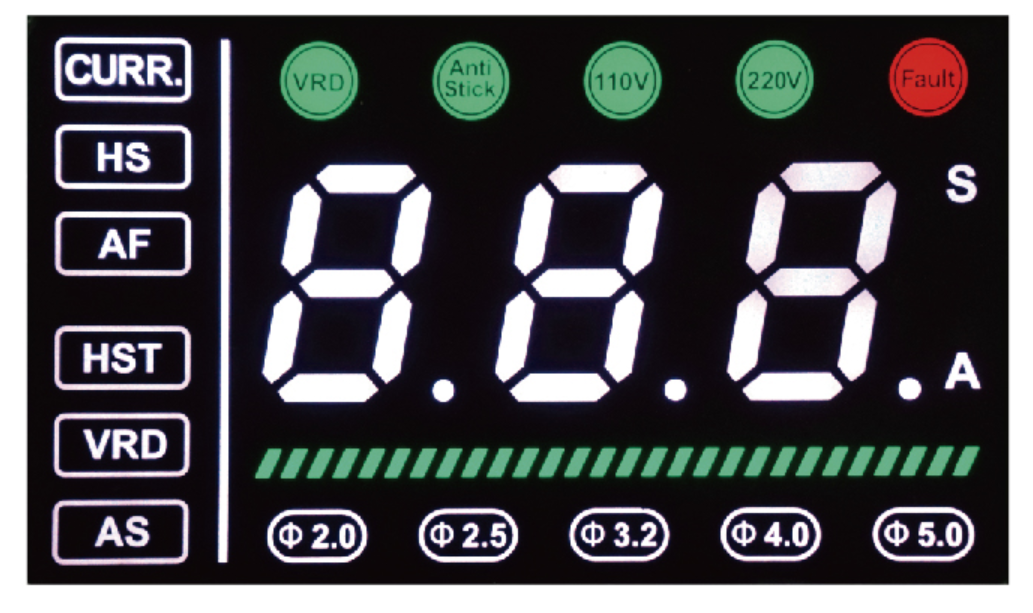

LED panel as below :
| Parameters | ARC 400D |
| Input Voltage (V) | AC380V |
| Frequency (Hz) | 50/60Hz |
| Phase | 3 |
| Rated Input Current (A) | 32 |
| Rated Input Power (KVA) | 21.6 |
| No-load Voltage (V) | 72 |
| Welding Current (A) | 30-400 |
| Welding voltage(V) | 21.2-36 |
| Arc start (A) | built-in |
| Arc force (A) | Yes |
| VRD | Yes |
| Rated Duty Cycle(%) 40℃ | 30% |
| Insulation Grade | F |
| Protection Class | IP21S |
| Cooling | Air |
| Dimension(mm) | 490*235*430 |
| Weight(Kg) | 15 |
