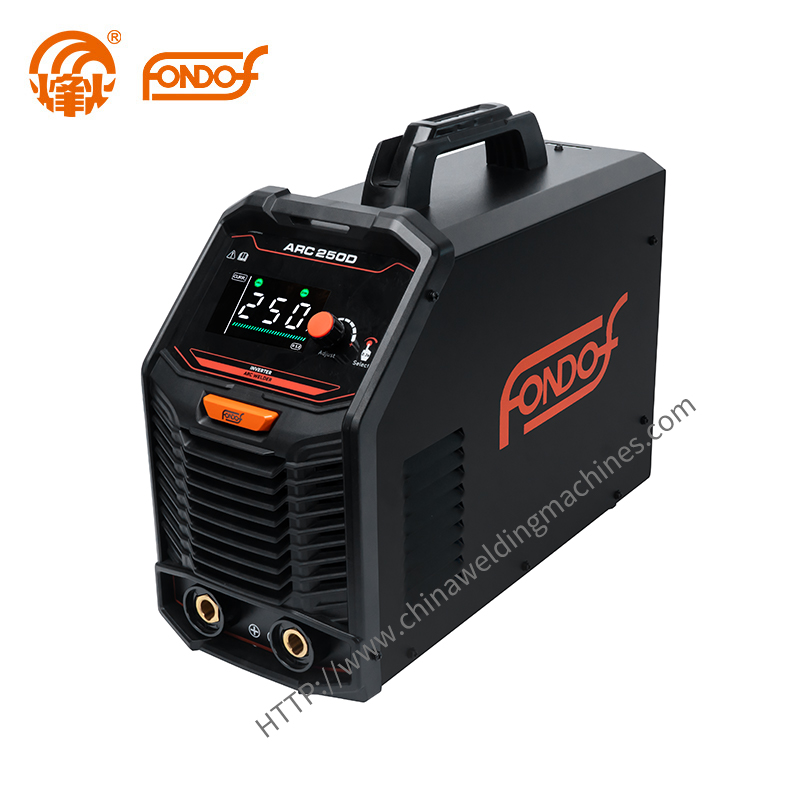

ARC 250D
ARC 250D
DUST-PROOF PROFESSIONAL MODEL
With Professional dust-proof design,Adapted to harsh working conditions
With current sensor , Sensing current in real time to drive precise control.
With LED screen display , all functions visible ,intelligent control in one step ,
The ideal rod diameter appears as you adjust the current.
With adjustable Arc force to ensure smoothly welding ,
With adjustable hot start to ensure smoothly arc ignition,
With ANTI-STICK to prevents rod sticking for just smooth welding.
With VRD function to ensure operation safety
250A real output , Stable output, Perfect welding seam ,
Weldable acid、alkaline and cellulose electrodes.

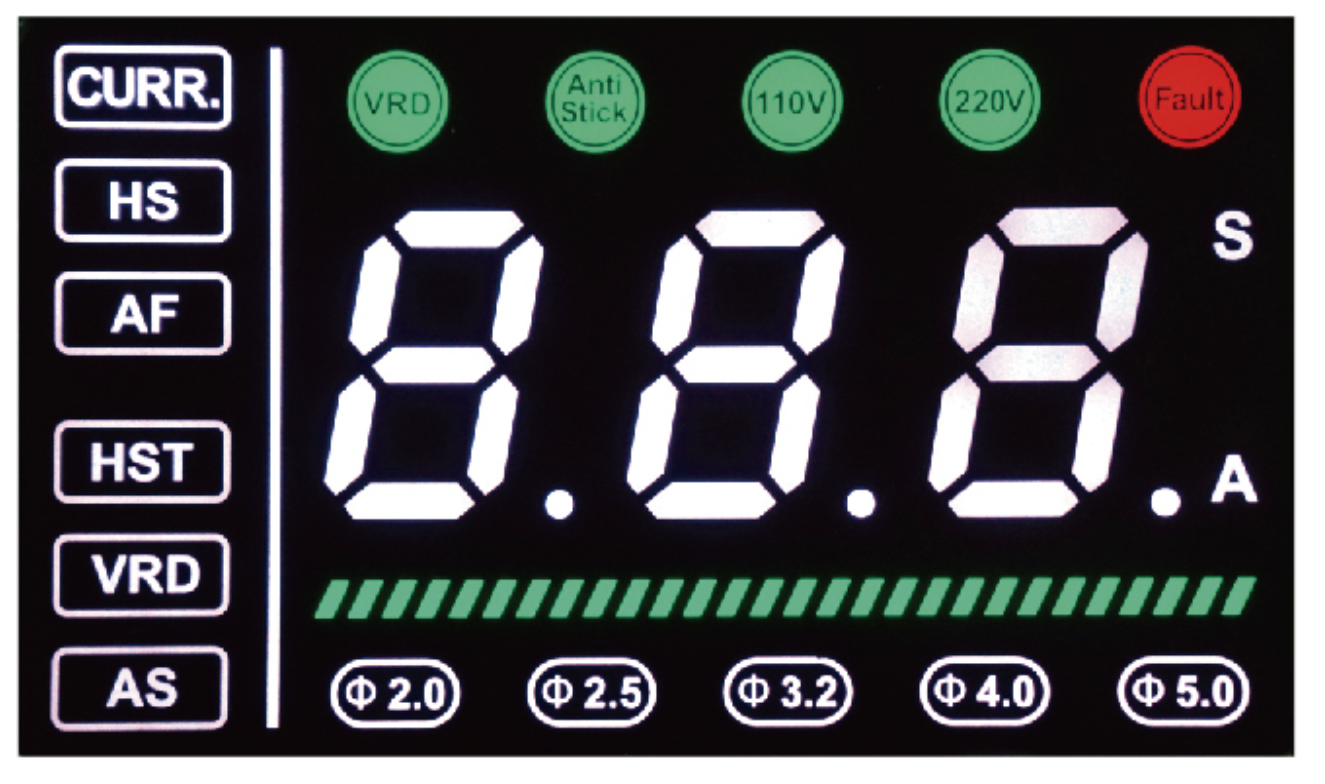

LED panel as below ;
![]()

| Parameters | ARC 250D |
| Input Voltage (V) | AC220V |
| Frequency (Hz) | 50/60 |
| Phase | 1 |
| Rated Input Current (A) | 52 |
| Rated Input Power (KVA) | 11.4 |
| No-load Voltage (V) | 70 |
| Welding Current (A) | 30-250 |
| Welding voltage(V) | 20.8-30 |
| Arc start (A) | built-in |
| Arc force (A) | Yes |
| VRD | Yes |
| Rated Duty Cycle(%) 40℃ | 25% |
| Insulation Grade | F |
| Protection Class | IP21S |
| Cooling | Air |
| Dimension(mm) | 440*180*360 |
| Weight(Kg) | 10.6 |
