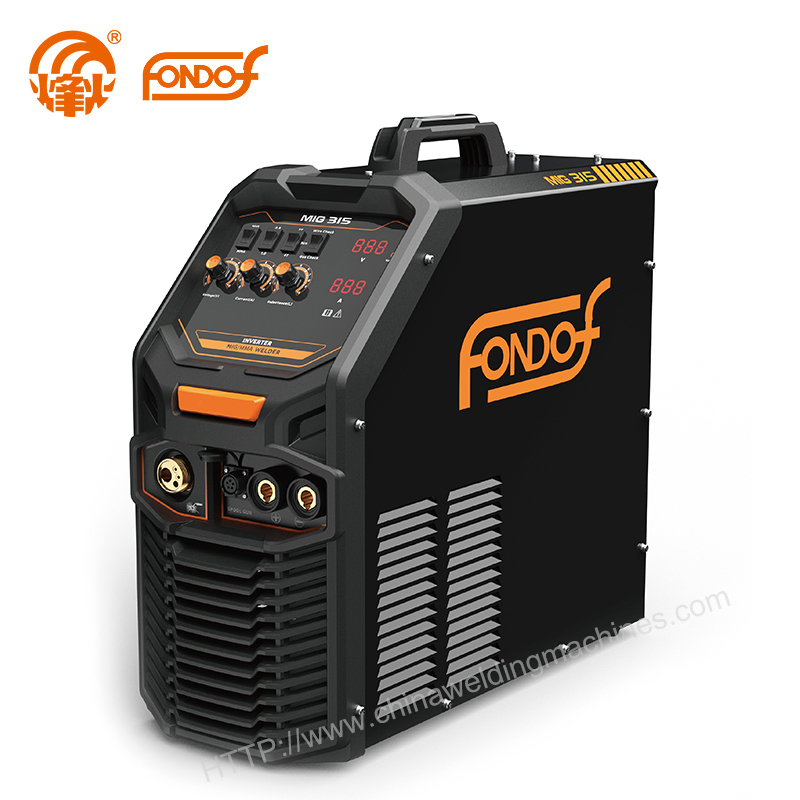

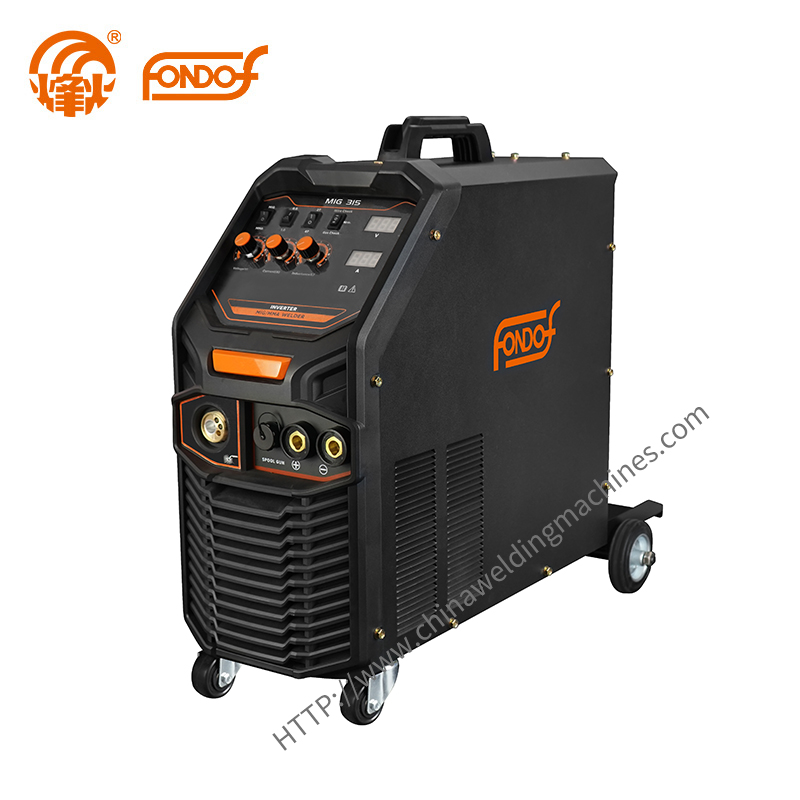

MIG 315

Features:

IGBT Inverter technology

MIG ,MMA function .

Display output voltage and current ,

constanct stable arc

Easy to operate ;

With wire select .

With spatter control ,

With high speed wire feeder .

With 2T/4T function ,










    ParametersMIG 315
Input Voltage (V)AC380V
Frequency (Hz)50/60
Phase 3
Rated Input Current (A)(MIG) 20
Rated Input Current (A)(MMA) /
Rated Input Power (KVA)(MIG )13.1
Rated Input Power (KVA)(MMA )/
Wire feeding speedM/MIN) 2.0-24
Welding Current (A)(MIG )50~315
Welding Current (A)(MMA  )30~250
Welding voltage(V)16.5~29.8
No-load Voltage (V)56
Rated Duty Cycle(%) 40(MIG )35%
Rated Duty Cycle(%) 40(MMA )60%
Wire   diameter (mm) 0.8/1.0
Protection   ClassIP21S
Insulation GradeF
Dimension(mm)604*250*571
Weight(Kg)23.8
