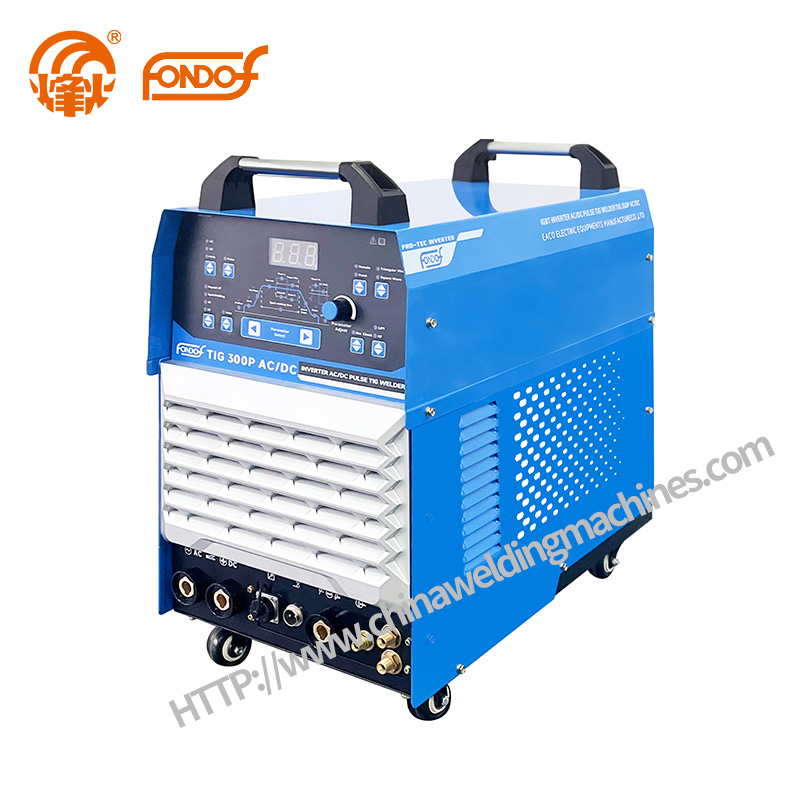

TIG 300P AC/DC

TIG 300P AC/DC

INVERTER AC\DC PULSE TIG WELDER

Features:

IGBT Inverter welder

 Digital control with pulse ,

AC /DC TIG , MMA mode  ;

DC for steel , AC for Aluminum.

100%  arc initiation rate.

With 2T/4T,spot welding function,

With remote control , Optional HF TIG or LIFT TIG ,

AC mode :Optional Square wave and Triangular wave ,


ParametersTIG 300P   AC/DC
Rated Input Voltage (V)3PH380
Power Frequency(Hz)50/60
Rated Input CurrentA DC:19 /AC19/ MMA:20
Rated Input Power(KVA)12.8
No-load Voltage(V)90V
Pulse Frequency(Hz)0.210
Pulse width(%) 1   99
AC Frequency(Hz)20   120
AC Clean width%   -20   +20
Welding current(A) DC15300/  AC30300/
    MMA15
250
Up slope up time(S) 0   10
Down slope down time(S) 0   10
Gas Pre-flow time(S) 0   0.5
Gas Post-flow time(S) 0   10

Rated Duty Cycle(%)40℃)DC:30/AC30    /MMA:60
Efficiency(Rated condition) 0.85
Protection class IP21S
Dimensions(mm)580*330*580
Weight(kg)36.5
