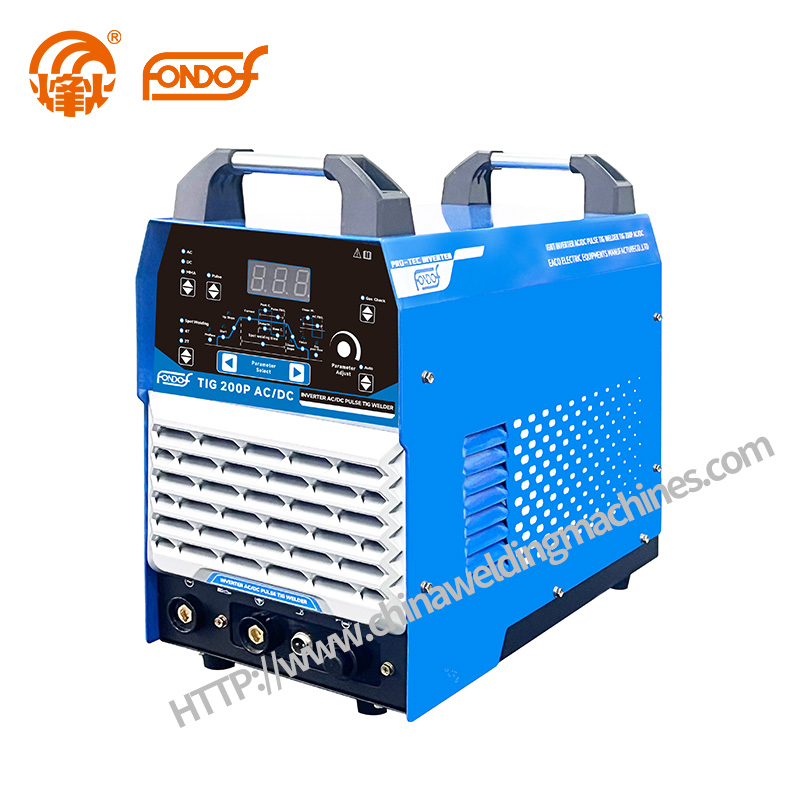

TIG 200P AC/DC
INVERTER AC\DC PULSE TIG WELDER
Features:
IGBT Inverter welder
Digital control with pulse ,
AC /DC TIG , MMA mode ;
DC for steel , AC for Aluminum.
100% arc initiation rate.
With 2T/4T,spot welding function,
| Parameters | TIG 200P AC/DC |
| Rated Input Voltage (V) | 1PH220 |
| Power Frequency(Hz) | 50/60 |
| Rated Input Current（A） | DC:27/AC：28 MMA:29 |
| Rated Input Power(KVA) | 9.5 |
| No-load Voltage(V) | 60V |
| Pulse Frequency(Hz) | 0.2～10 |
| Pulse width(%) | 1 ～99 |
| AC Frequency(Hz) | 20 ～120 |
| AC Clean width（% ） | -20 ～+20 |
| Welding current(A) | DC15～200 / AC30～200 / MMA15～160 |
| Up slope up time(S) | 0 ～10 |
| Down slope down time(S) | 0 ～10 |
| Gas Pre-flow time(S) | 0 ～0.5 |
| Gas Post-flow time(S) | 0 ～10 |
| Rated Duty Cycle(%)（40℃） | 30 |
| Efficiency(Rated condition) | ≥0.85 |
| Protection class | IP21S |
| Dimensions(mm) | 530x250x430 |
| Weight(kg) | 22 |
