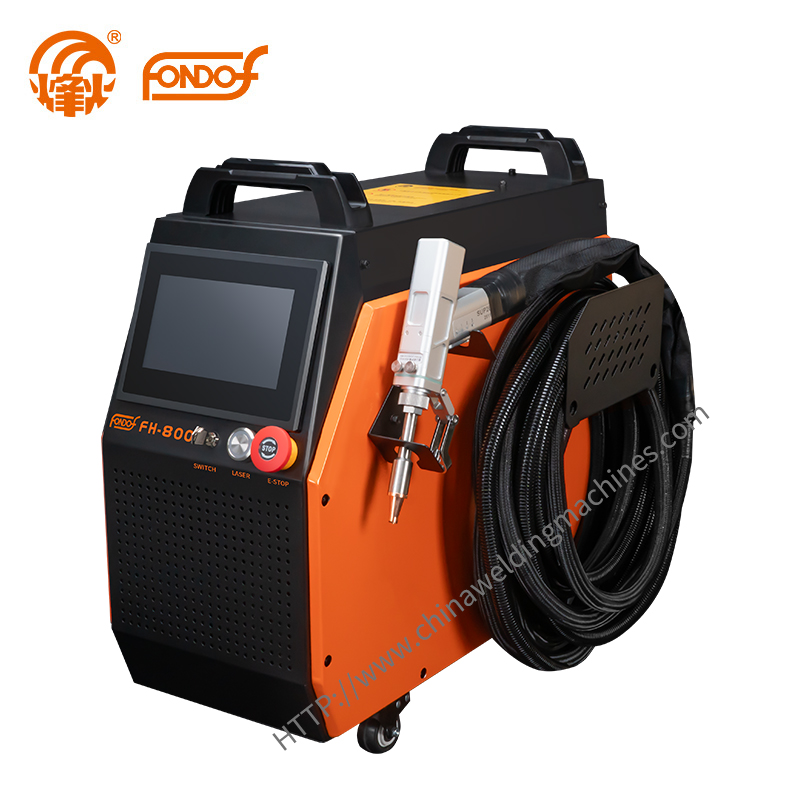

FH-800
Features:
Air cooling. No need for circulating water or antifreeze maintenance.
Portable and ready for immediate use.
High welding efficiency .
2~10 times faster than traditional welding ,
Low heat input – No deformation on thin sheets.
Easy to operate , No need high skill operator ,
Low-noise operation – Improves the working environment.
Multi function machine :Welding ，cutting , cleaning ,pass cleaning .
| Character | FH-800 |
| Power supply(V) | 1PH-220V |
| Laser power（W） | 800 |
| Rated Input Current（A） | 9.6 |
| Rated Input Power(KVA) | 2.1 |
| Output connector | QBH |
| Laser wave length (nm) | 1080±10 |
| Cooling | Air cooling |
| Fiber Core diameter | 25μm |
| Protection gas | Argon/Nitrogen |
| Fiber length (m) | 10(Exposed 9m) |
| Environment temperature | -10℃~40℃ |
| Relative humidity | 30%≤RH≤85% |
| Recommend welding thickness | 0.8~2mm |
| Welding gap requirement | ≤0.5mm |
| Size（mm） | 565*255*585 |
| Weight（kg）±5 | 40 |
