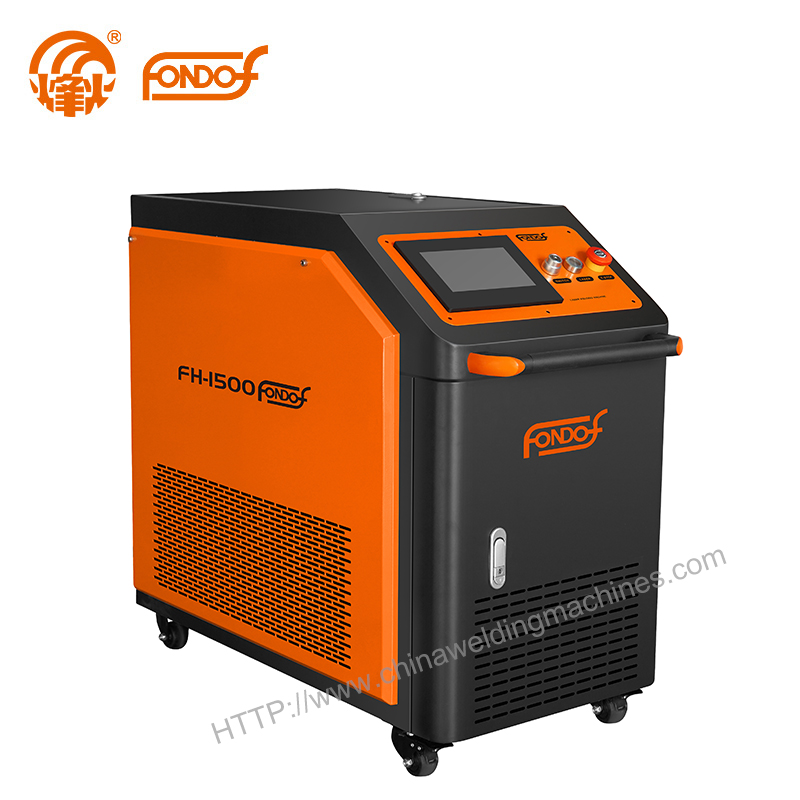

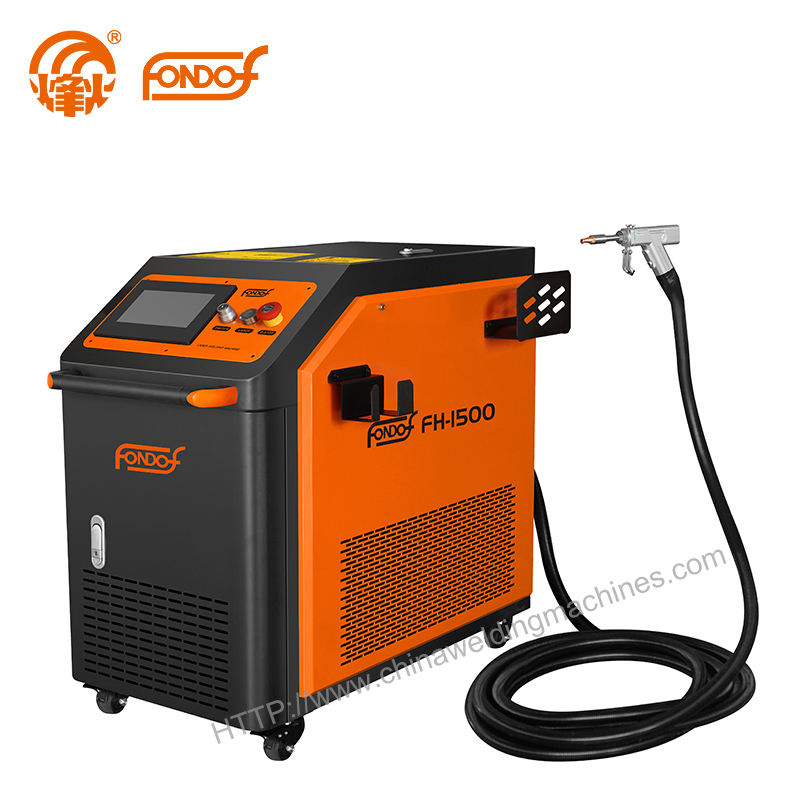

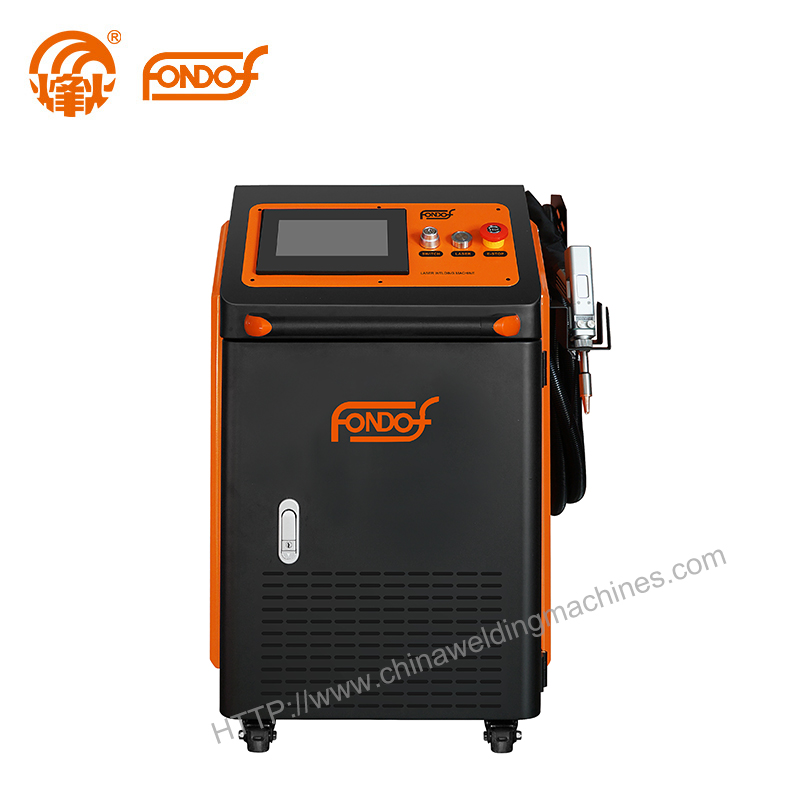

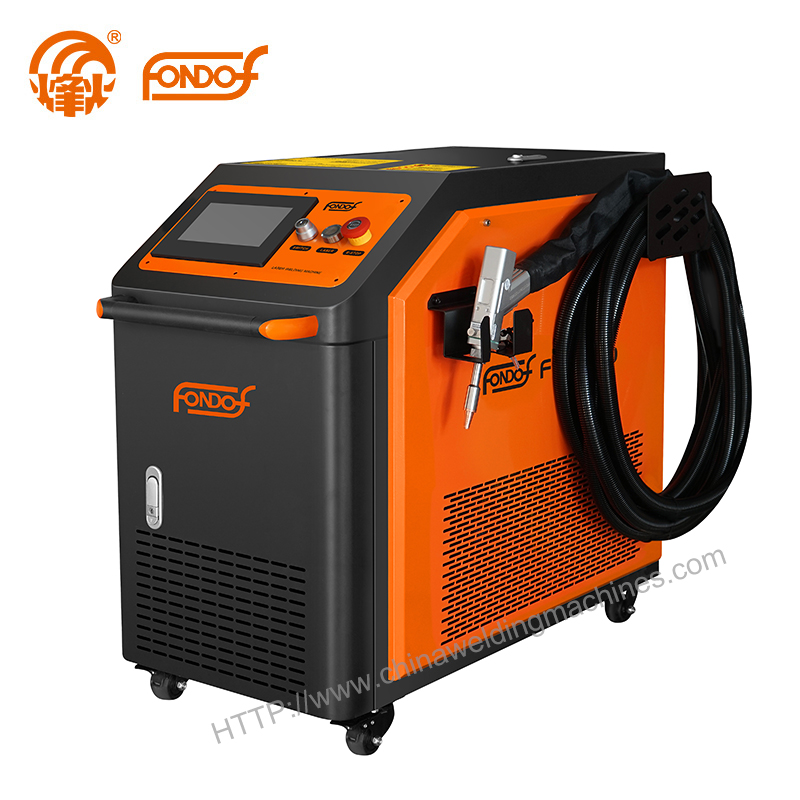

FL-1500
Inquire Now
None
Share:
View The Video
Features:
Water cooling ,High cooling efficiency.
Suitable for long-term, high-load continuous work.
High welding efficiency .
2~10 times faster than traditional welding ,
Uniform, firm welds with attractive appearance.
Easy to operate , No need high skill operator ,
Low-noise operation – Improves the working environment.
Multi function machine :Welding ，cutting , cleaning ,pass cleaning .
| Character | FH-1500 |
| Power supply(V) | 1PH-220 |
| Laser power（W） | 1500 |
| Rated Input Current（A） | 25.7 |
| Rated Input Power(KVA) | 5.7 |
| Output connector | QBH |
| Laser wave length (nm) | 1080±10 |
| Cooling | Water cooling |
| Fiber Core diameter | 25μm |
| Protection gas | Argon/Nitrogen |
| Fiber length (m) | 10(Exposed 8m) |
| Environment temperature | -10℃~40℃ |
| Relative humidity | 30%≤RH≤85% |
| Recommend welding thickness | 0.8~4mm |
| Welding gap requirement | ≤0.5mm |
| Size（mm） | 910*560*790 |
| Weight（kg）±5 | 106 |
