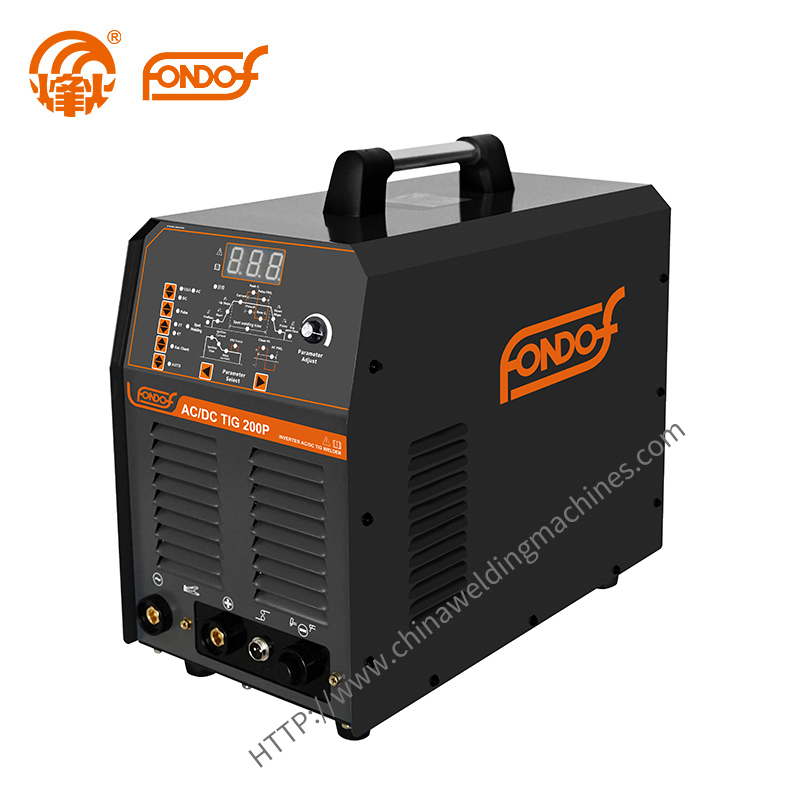

AC/DC TIG 200P
Features:
IGBT module inverter ,
AC/DC output ,
DC for steel , AC for Aluminum.
100% arc initiation rate.
Digital control,with pulse ,
Fast arc start ,
High-speed welding – bright, clean beads with good atomization.
PWM control – fast response, constant current, stable output.
Modes: MMA, TIG, pulse TIG, and AC/DC TIG.
Compatible with acidic, basic, cellulose, and heat-resistant steel electrodes.
| Parameters | AC/DC TIG 200P |
| Rated Input Voltage (V) | 1PH220 |
| Power Frequency(Hz) | 50/60 |
| Rated Input Current（A） | AC:31/DC:27/ MMA:29 |
| Rated Input Power(KVA) | 6.8 |
| No-load Voltage(V) | 60 |
| Pulse Frequency(Hz) | 0.2～10 |
| Pulse width(%) | 1 ～99 |
| AC Frequency(Hz) | 20 ～120 |
| AC Clean width（% ） | -20 ～+20 |
| Welding current(A) | DC15～200 / AC30～200 / MMA15～160 |
| Up slope up time(S) | 0 ～10 |
| Down slope down time(S) | 0 ～10 |
| Gas Pre-flow time(S) | 0 ～0.5 |
| Gas Post-flow time(S) | 1 ～10 |
| Rated Duty Cycle(%)（40℃） | 30 |
| Protection class | IP21S |
| Dimensions(mm) | 530x250x430 |
| Weight(kg) | 22 |
