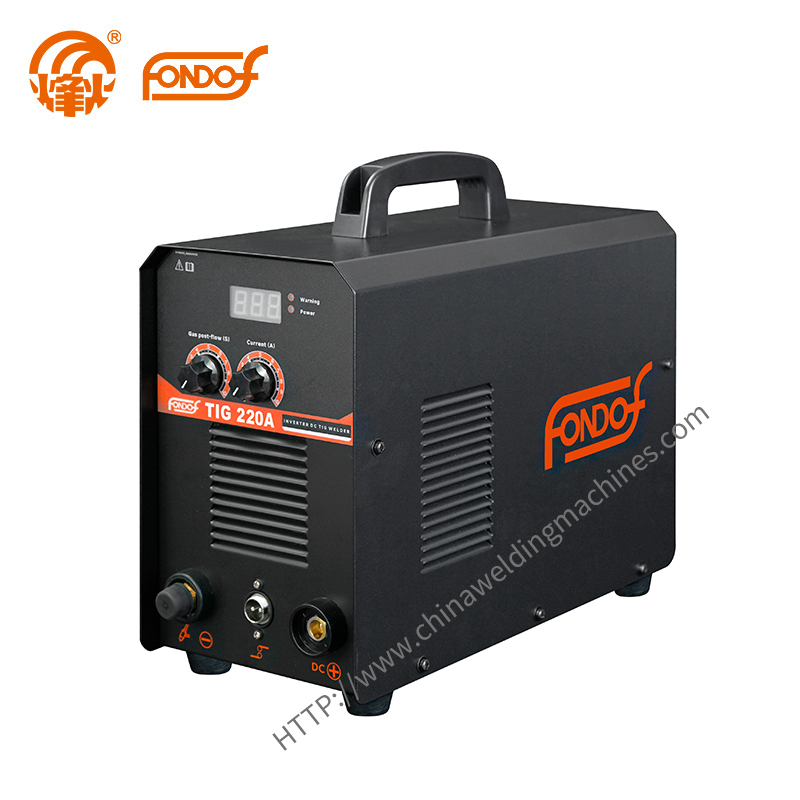

TIG 220A
Features:
IGBT Inverter welder ,
DC TIG
Smoothly arc striking,
Easy to operate ,
Adjustable Gas post flow time ,
| Parameters | TIG 220A |
| Rated Input Voltage (V) | 1PH220 |
| Power Frequency(Hz) | 50/60 |
| Rated Input Current（A） | 36 |
| Rated Input Power(KVA) | 7.9 |
| No-load Voltage(V) | 54 |
| Welding Current(A) | 15-220 |
| Welding Voltage(V) | 10.6~18.8 |
| Rated Duty Cycle %(40℃) | 0.25 |
| Insulation Grade | F |
| Protection Class | IP21S |
| Dimensions(mm) | 388*162*318 |
| Net Weight(Kg) | 7.6 |
