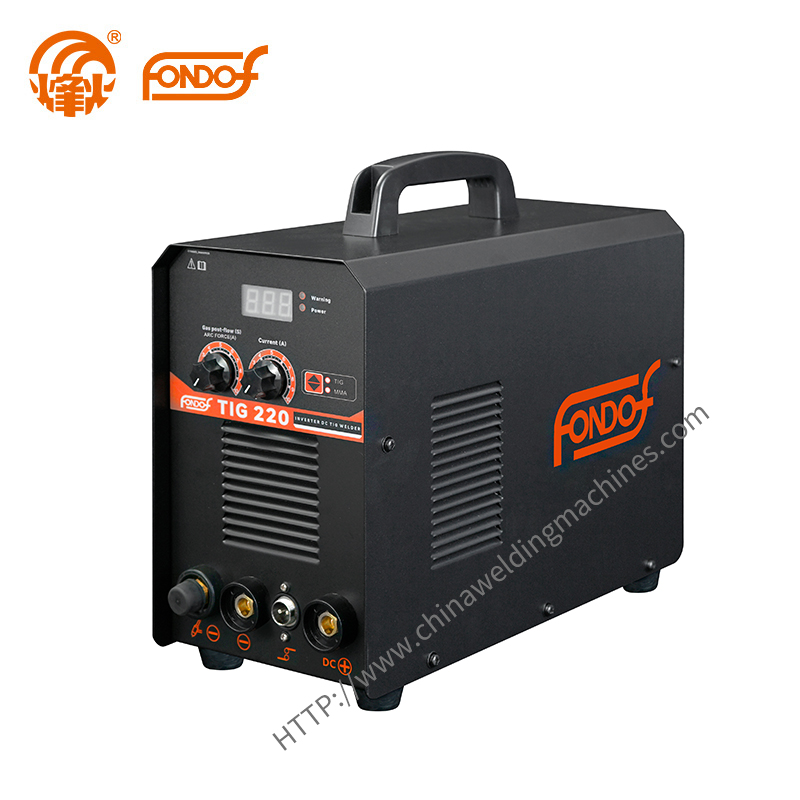

TIG 220
Features :
IGBT Inverter welder ,
DC TIG & MMA,
Smoothly arc striking,
Easy to operate ,
Adjustable ARC force ,
Adjustable Gas post flow time ,
| Parameters | TIG 220 |
| Rated Input Voltage (V) | 1PH220 |
| Power Frequency(Hz) | 50/60 |
| Rated Input Current（A） | TIG :36,MMA:33 |
| Rated Input Power(KVA) | TIG :7.9, MMA :7.3 |
| No-load Voltage(V) | 52 |
| Welding Current(A) | TIG:15~220,MMA: 15~180 |
| Welding Voltage(V) | TIG:10.6-18.8,MMA:20.6~27.2 |
| Rated Duty Cycle %(40℃) | 25 |
| Insulation Grade | F |
| Protection Class | IP21S |
| Dimensions(mm) | 388*162*318 |
| Net Weight(Kg) | 7.8 |
