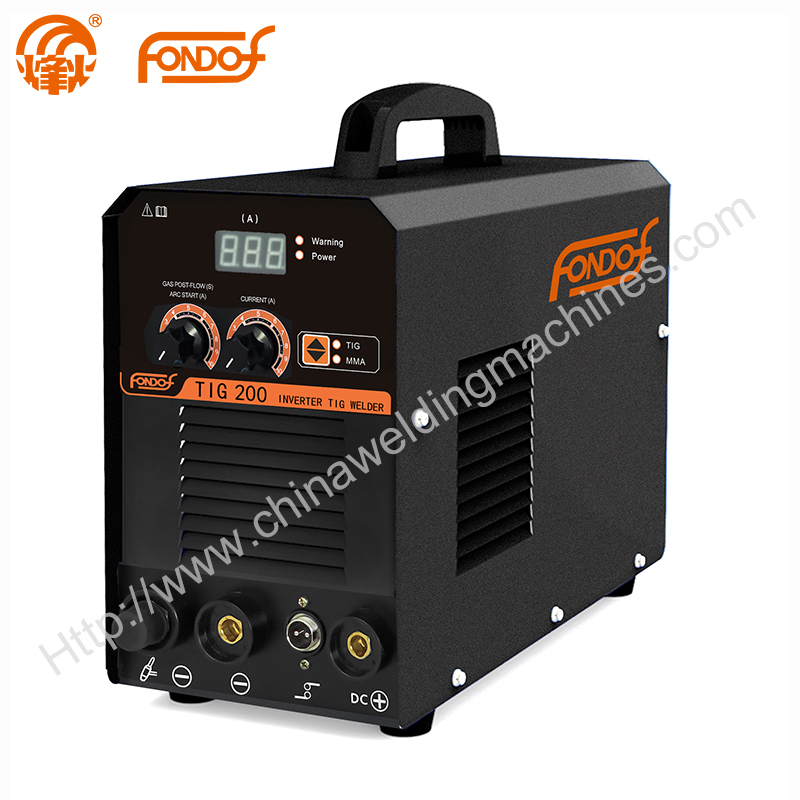

TIG 200
Features:
IGBT Inverter welder ,
DC TIG & MMA,
Smoothly arc striking,
Easy to operate ,
Adjustable ARC force ,
Adjustable Gas post flow time ,
| Technical Parameters | TIG 200 |
| Rated Input Voltage (V) | 1PH220 |
| Power Frequency(Hz) | 50/60 |
| Rated Input Current（A） | TIG:24.5 |
| Rated Input Power(KVA) | TIG:5.4 |
| No-load Voltage(V) | 53 |
| Welding Current(A) | TIG:15-170 |
| Welding Voltage(V) | TIG:10.6-16.8 |
| Rated Duty Cycle %(40℃) | 30 |
| Protection Class | IP21S |
| Dimensions(mm) | 388*162*318 |
| Net Weight(Kg) | 7.1 |
