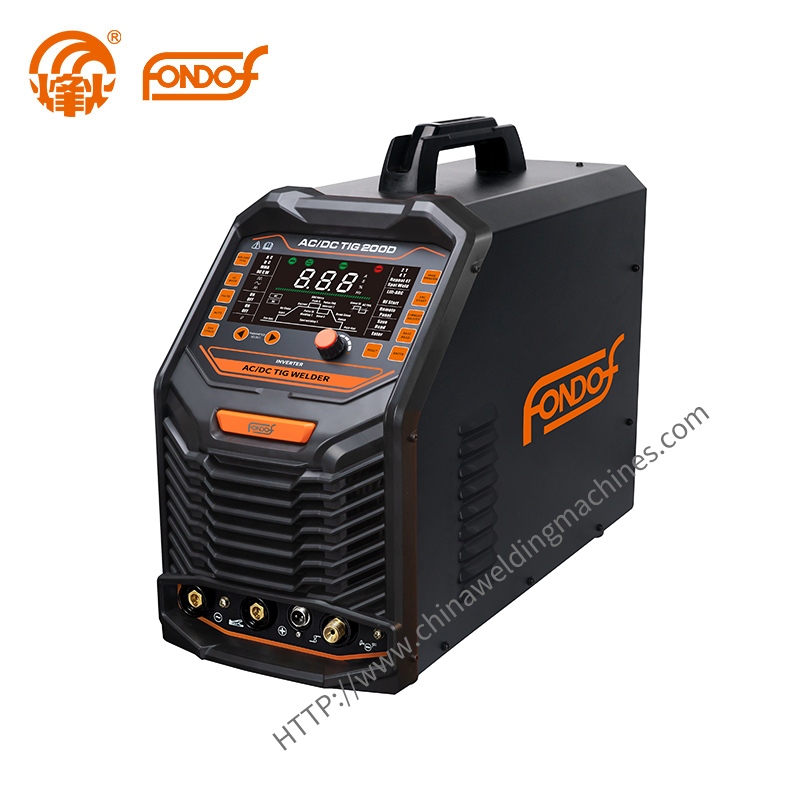

AC/DC TIG 200D
Features:
IGBT inverter with PWM control – constant current, stable output.
Fast arc start – high efficiency, 100% success.

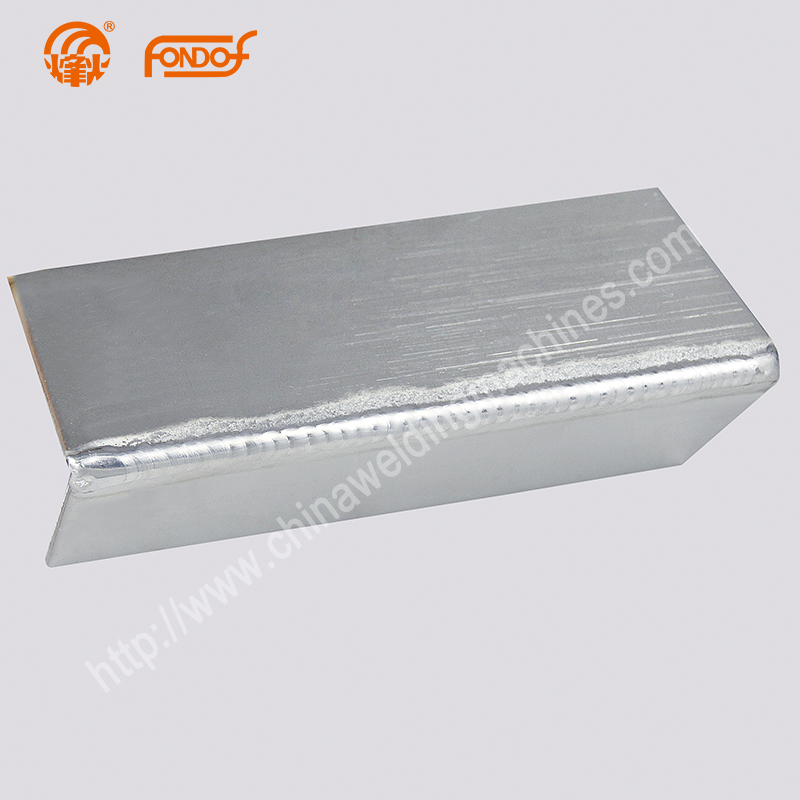

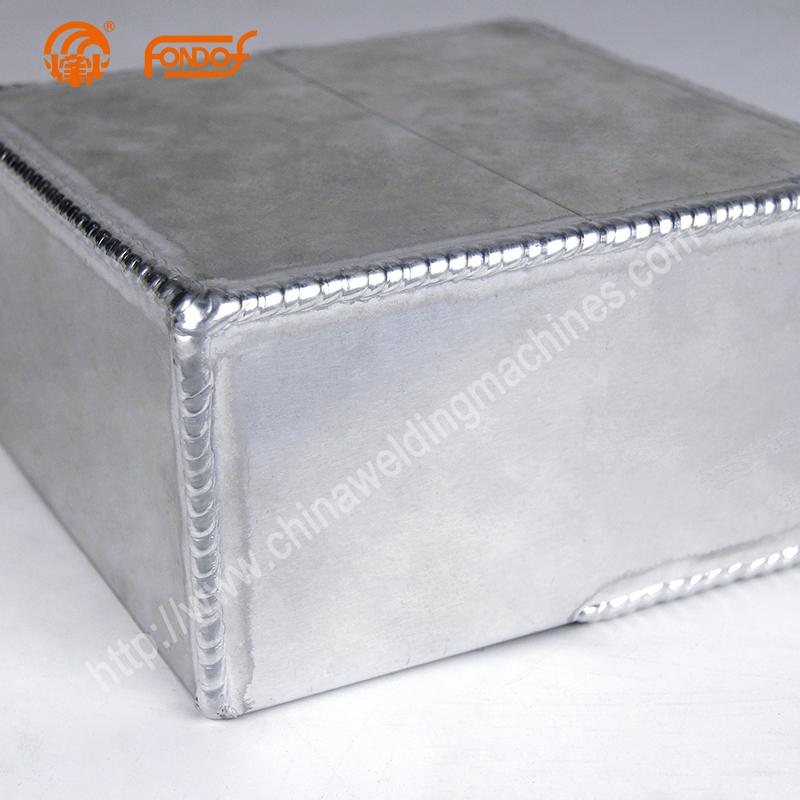

High-speed welding – bright, clean beads with good atomization.
Multiple modes: ARC, TIG, pulse TIG, and AC/DC TIG.
Overheat & voltage protection – high reliability.
Auto mode – simplifies panel operation.
ARC features: arc start, arc force, VRD, and anti-stick.
Versatile – welds stainless steel, carbon steel, copper, titanium, aluminum alloys, and more.
| Parameters | AC/DC TIG 200D |
| Rated Input Voltage (V) | 1PH220 |
| Power Frequency(Hz) | 50/60 |
| Rated Input Current（A） | DC:27/AC:31/ MMA:29 |
| Rated Input Power(KVA) | DC：5.9/AC:6.8/MMA：6.4 |
| No-load Voltage(V) | 60 |
| Pulse Frequency(Hz) / Cool welding interval time(S) | AC：0.2～10/DC:0.2～999 |
| Pulse Width(%) /Cold Welding time(ms) | 1 ～99 |
| AC Frequency(Hz) | 20 ～120 |
| AC Clean width（% ） | -20 ～+20 |
| Welding current(A) | DC15～200 / AC30～200 / MMA15～160 |
| Up slope up time(S) | 0 ～10 |
| Down slope down time(S) | 0 ～10 |
| Gas Pre-flow time(S) | 0 ～0.5 |
| Gas Post-flow time(S) | 1 ～10 |
| Rated Duty Cycle(%)（40℃） | 30 |
| Protection class | IP21S |
| Dimensions(mm) | 550*235*430 |
| Weight(kg) | 21.7 |
