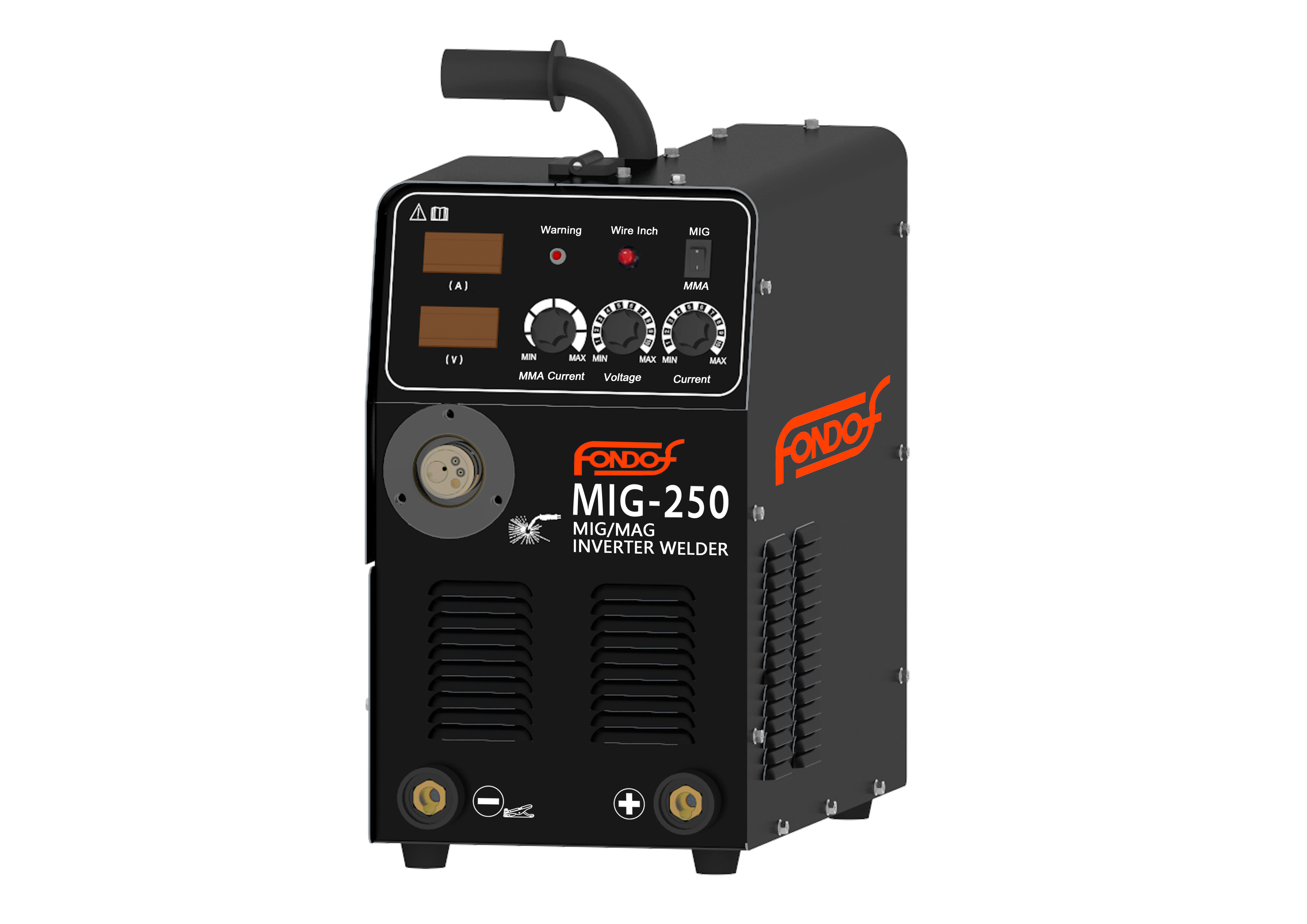

MIG250INT

Feature:

IGBT full bridge inverter;

User friendly Panel ,Easy to operate;

High weding quality :good seam and slight distortion;

Light in weight ,portable to carry .

Technical   Parameters MIG250INT
Rated   Input Voltage(V)AC380V
 Power frequency(Hz)50/60Hz
Rated Input Current(A)16(MIG)                      14(MMA)
Rated Input Power(KVA)8.0(MIG)                      7.0(MMA)
Wire feeding speed(M/MIN)1.312
Output current -MMA 20200
Output current -MIG 40250
Output voltage 1626.5
No-load voltage(V)51
Rated Duty Cycle%35(MIG)                      35(MMA)
 Wire Diameter(mm)Ф0.8/Ф1.0
Protection GradeIP21S
Insulation ClassF
Efficiency(Rated Conditions)80
 Dimension(mm)480x245x495
Net Weightkg17.5
