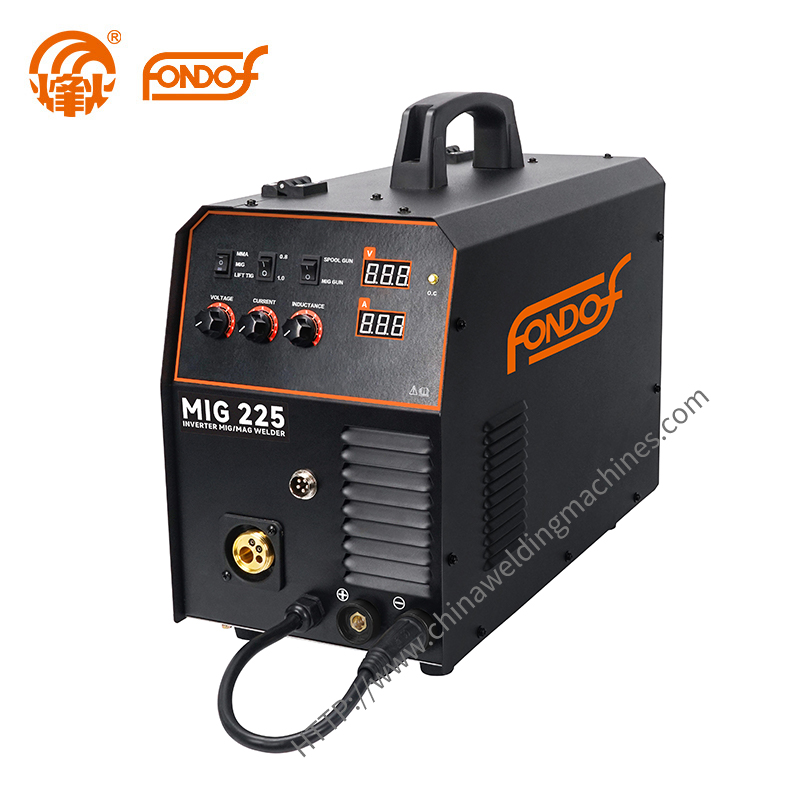

MIG 225
Features:
IGBT Inverter technology
Suit for 5KG&15KG wire ,
MIG ,MMA function .
With Lift ARC TIG function ,
With synergic function ,
constanct stable arc
Easy to operate .
| Parameters | MIG 225N |
| Input Voltage (V) | AC 220V |
| Frequency (Hz) | 50/60Hz |
| Phase | 1 |
| Rated Input Current (A) | MIG :45.8 MMA :30.5 |
| Rated Input Power (KVA)) | MIG 10.1 MMA :6.7 |
| Wire feeding speed（M/MIN) | 2~15 |
| Welding Current (A) | MIG :50-225 MMA :50-160 |
| Welding voltage(V) | MIG:16.5~25.3 MMA :22~26.4 |
| No-load Voltage (V) | 54 |
| Rated Duty Cycle(%) 40℃ | MIG：20，MMA：40 |
| Wire diameter (mm) | 0.8/1.0 |
| Protection Class | IP21S |
| Insulation Grade | F |
| Dimension(mm) | 560*240*430 |
| Weight(Kg) | 13.1 |
