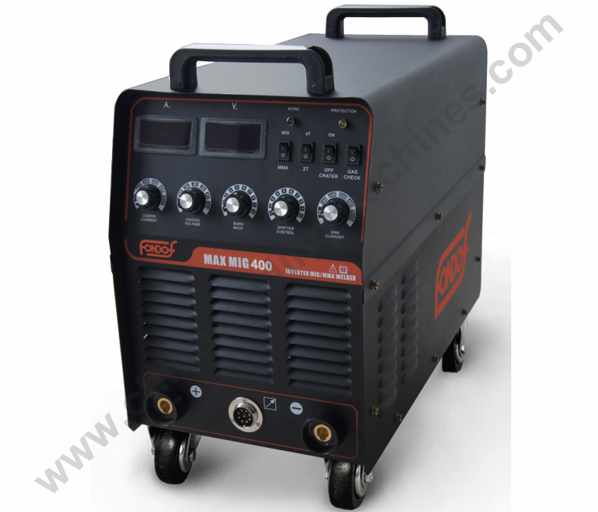

IGBT Module Inverter Series MAX MIG 400

Features:

1. Have Anti-melting ball function; compatible with arc striking circuit, achieve 100% success rate of arc ignition

2. Arc crater functions: adjust crater voltage and crater current to adapt with industrial requirements and improve seam quality when arc craters

3. 2T/4T self lock functions: decreases operators’ labor intensity with self lock functions especially when big scale welding or long seam welding

4. With function of auto arc replenishment, provide stable arc which makes little spatter, and provide strong penetrating power which makes deep weld pool; beautiful welding shape; especially suitable for thin metal plate welding

5. Digital welding current and welding voltage preset and LCD display screen, convenient and visible to operate.

6. Adjustable burn back function , Auto dispelling melting balls from the welding process

7. High welding quality: good seam and slight distortion

8. Mainly used in welding low carbon steel, low alloy steel and other ferrous metals; also can weld stainless steel, aluminum and aluminum alloy with mixed gas or inert gas shielding.

9. Strong ability of anti-fluctuation of power supply, the ratio reaches 15% ( industrial requirement 10%.)

Technical ParametersMAX MIG 400
Rated Input Voltage (V)3PH380±15%
Power Frequency(Hz)50/60
Rated Input Current(A)22.5
Rated Input Power(KVA)14.8
No-load Voltage(V)58
Rated Duty Cycle (%)60
Output Current Range(A)50-400
Output Voltage Range(V)16-34
Crater Current Range(A)60-400
Crater Voltage Range(V)12-36
Wire Diameter(mm)0.8/1.0/1.2
Wire Typesolid /flux-cored
Welding MethodManual setting
Welding Thickness(mm)2-30
Protection ClassIP21S
Insulation GradeF
Dimensions(mm)595*310*555
Net Weight(Kg)34
