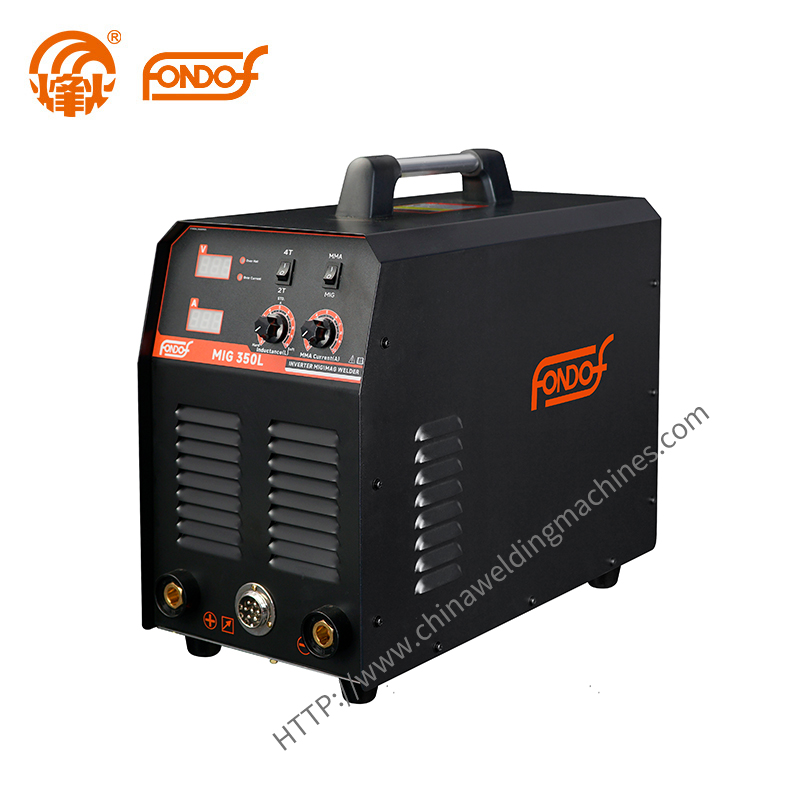

MIG 350L
Features:
IGBT Inverter technology
Instant arc ingition speed , Less spatter ;
User friendly panel ,Easy to operate ;
High welding quality :good seam and slight distortion ;
MIG ,MMA function .
Display output voltage and current ,
| Technical Paramerters | MIG 315F |
| Input Voltage（V） | 3PH380 |
| Frequency（HZ） | 50/60 |
| Rated Input Current（A） | MMA:14.0 MIG:22.0 |
| Rated Input Power（KVA） | MMA:9.2 MIG:14.4 |
| Wire speed range (M/MIN) | 0.8~24m |
| Rated Output Current （A） | MIG:50~315MMA:20~250 |
| Rated Output Voltage （V） | 16~29.8 |
| No-load Voltage（V） | 67 |
| Rated Duty Cycle%(40℃) | MIG:40 MMA:60 |
| Wire diameter(mm) | Ф0.8/Ф1.0 |
| Protection Class | IP21S |
| Dimensions(mm) | 530*250*430 |
| Net Weight(Kg) | 19 |
