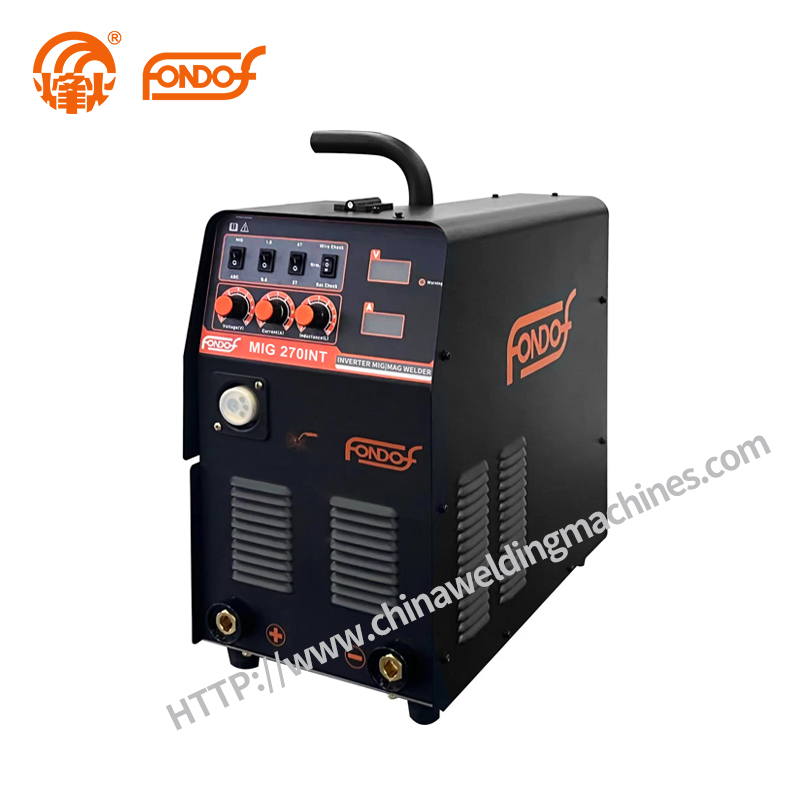

MIG 270
Features:
IGBT Inverter technology
Heavy duty cycle ,
MIG ,MMA function .
constanct stable arc
Easy to operate ;
Display output voltage and current ,
| Technical Paramerters | MIG 270 |
| Input Voltage（V） | 3PH380 |
| Frequency（HZ） | 50/60 |
| Rated Input Current（A） | 18 |
| Rated Input Power（KVA） | 11.8 |
| Wire speed range (M/MIN) | 0.8~24m |
| Rated Output Current （A） | MIG:50~270 MMA:30~220 |
| Rated Output Voltage （V） | MIG:16.5~27.5 MMA:21.2~28.8 |
| No-load Voltage（V） | 56 |
| Rated Duty Cycle%(40℃) | MIG:35 MMA:60 |
| Wire diameter(mm) | ∮0.8/∮1.0 |
| Protection Class | IP21S |
| Dimensions(mm) | 465*243*502 |
| Net Weight(Kg) | 21 |
