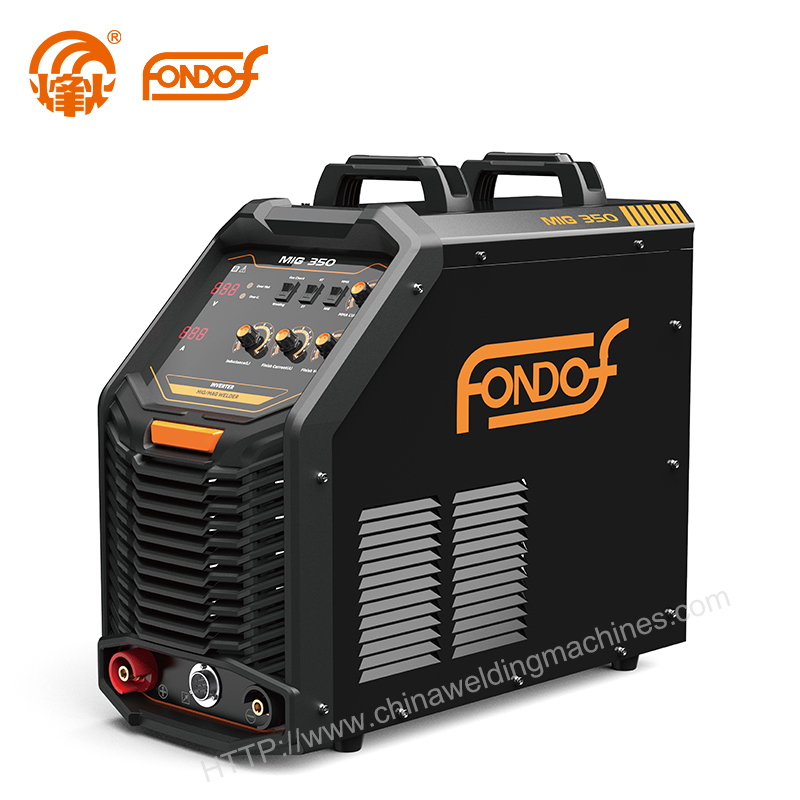

MIG 350
Features:
IGBT Inverter technology
MIG ,MMA function .
Display output voltage and current ,
constanct stable arc
Easy to operate ;
With wire select .
With spatter control ,
With crater control ,
With 2T/4T function ,
| Parameters | MIG 350 |
| Input Voltage (V) | AC 380V |
| Frequency (Hz) | 50/60 |
| Phase | 3 |
| Rated Input Current (A)(MIG) | 22.3 |
| Rated Input Current (A)(MMA) | 18.6 |
| Rated Input Power (KVA)(MIG ) | 14.6 |
| Rated Input Power (KVA)(MMA ) | 12.2 |
| Wire feeding speed（M/MIN) | 2.0-18 |
| Welding Current (A)(MIG ) | 50~350 |
| Welding Current (A)(MMA ) | 20~300 |
| Welding voltage(V) | 16.5~31.5 |
| No-load Voltage (V) | 61 |
| Rated Duty Cycle(%) 40℃(MIG ) | 60 |
| Rated Duty Cycle(%) 40℃(MMA ) | 100 |
| Wire diameter (mm) | ∮0.8/∮1.0/∮1.2 |
| Protection Class | IP21S |
| Insulation Grade | F |
| Dimension(mm) | 640*290*560 |
| Weight(Kg) | 31.5 |
