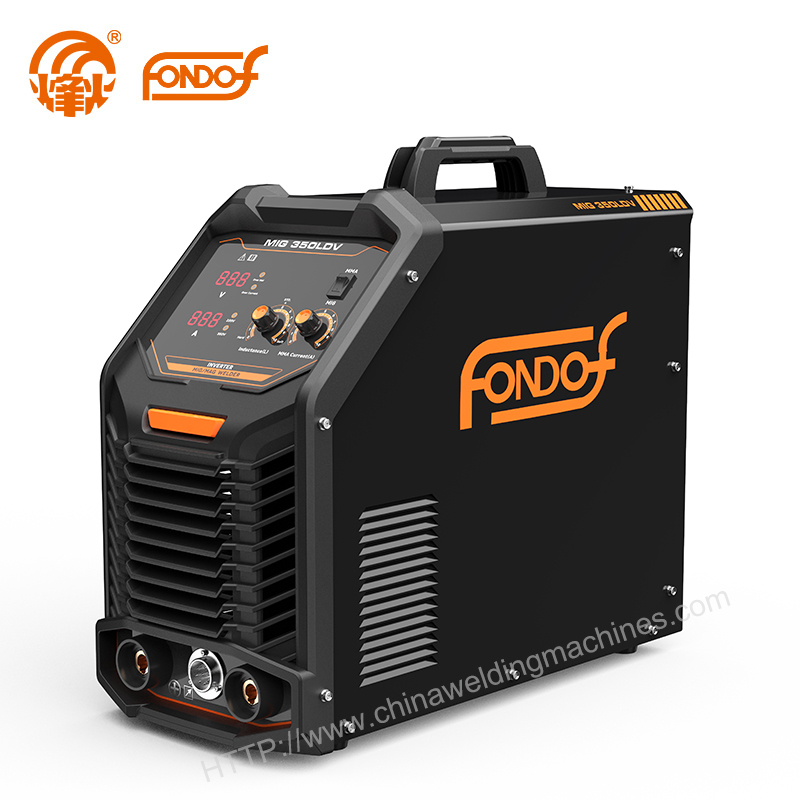

MIG 350LDV
Features:
IGBT Inverter technology
MIG ,MMA function .
Display output voltage and current ,
constanct stable arc
Easy to operate ;
With spatter control ,
With high speed wire feeder .
With 2T/4T function ,
| Parameters | MIG 350LDV | |
| Input Voltage (V) | AC220V | AC 380V |
| Frequency (Hz) | 50/60 | 50/60 |
| Phase | 1 | 3 |
| Rated Input Current (A)(MIG) | 33 | 25.8 |
| Rated Input Current (A)(MMA) | 30.6 | 18 |
| Rated Input Power (KVA)(MIG ) | 7.3 | 17 |
| Rated Input Power (KVA)(MMA ) | 6.7 | 11.8 |
| Wire feeding speed（M/MIN) | 2.0-24 | 2.0-24 |
| Welding Current (A)(MIG ) | 50-200 | 50-350 |
| Welding Current (A)(MMA ) | 50-160 | 50-250 |
| Welding voltage(V) | 16.5-24 | 16.5-31.5 |
| No-load Voltage (V) | 68 | 66 |
| Rated Duty Cycle(%) 40℃(MIG ) | 35% | 35% |
| Rated Duty Cycle(%) 40℃(MMA ) | 50% | 50% |
| Wire diameter (mm) | 0.8/1.0 | 0.8/1.0/1.2 |
| Protection Class | IP21S | |
| Insulation Grade | F | |
| Dimension(mm) | 572*260*510 | |
| Weight(Kg) | 21.5 | |
