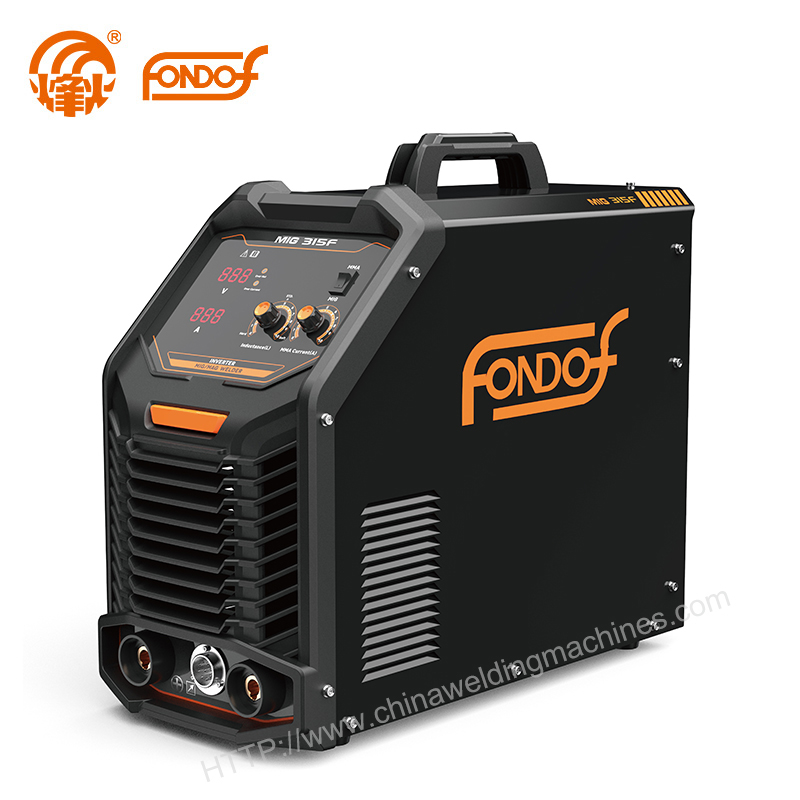

MIG 315F
Features:
IGBT Inverter technology
MIG ,MMA function .
Display output voltage and current ,
constanct stable arc
Easy to operate ;
With spatter control ,
With high speed wire feeder .
With 2T/4T function ,
| Parameters | MIG 315F |
| Input Voltage (V) | AC 380V |
| Frequency (Hz) | 50/60 |
| Phase | 3 |
| Rated Input Current (A)(MIG) | 22 |
| Rated Input Current (A)(MMA) | 14 |
| Rated Input Power (KVA)(MIG ) | 14.4 |
| Rated Input Power (KVA)(MMA ) | 9.2 |
| Wire feeding speed（M/MIN) | 2.0-24 |
| Welding Current (A)(MIG ) | 50~315 |
| Welding Current (A)(MMA ) | 20~250 |
| Welding voltage(V) | 16.5~29.8 |
| No-load Voltage (V) | 67 |
| Rated Duty Cycle(%) 40℃(MIG ) | 40 |
| Rated Duty Cycle(%) 40℃(MMA ) | 60 |
| Wire diameter (mm) | ∮0.8/∮1.0 |
| Protection Class | F |
| Insulation Grade | IP21S |
| Dimension(mm) | 572*260*510 |
| Weight(Kg) | 20 |
