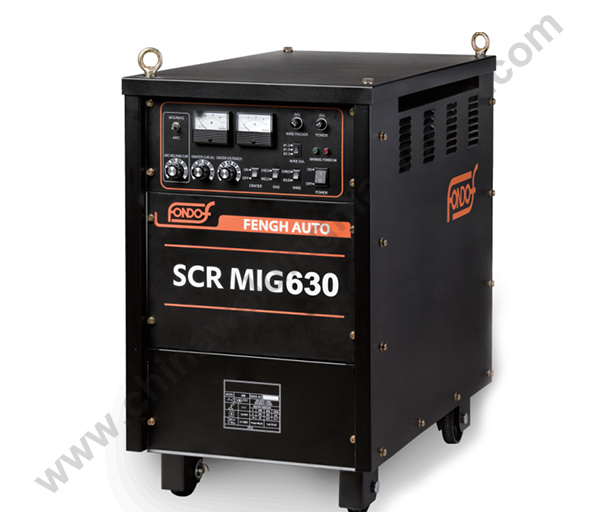

SCR MIG 630

Features:

1. Current, voltage and speed unified adjusting and separated adjustable, easy for less skilled users and for experienced users.

2. With energy saving function, machine could automatically turn off if machine stops for 2 minutes.

3. Auto-lock crater function reduces the labor intensity and makes welding control more convenient

4. Present function makes it easy to control the initial welding and seam shape

5. Melting ball control, ready for the next arc striking

6. Over-load protection avoids machine damaged by accident

7. Mainly used in welding low carbon steel, low alloy steel and other ferrous metals; also can weld stainless steel, aluminum and aluminum alloy with mixed gas or inert gas shielding.

8. Strong ability of anti-fluctuation of power supply, the ratio reaches 15% ( industrial requirement 10%.)


Technical ParametersSCR MIG 630
Rated Input Voltage (V)3PH380±15%
Power Frequency(Hz)50/60
Rated Input Current(A)69
Rated Input Power(KVA)45.4
No-load Voltage(V)74
Output Current Range(A)60-630
Output Voltage Range(V)16-44
Rated Duty Cycle 50%630A/44V
Rated Duty Cycle 100%445A/36.3V
Wire Diameter(mm)1.2/1.4/1.6
Wire TypeSolid/flux-cored
Welding MethodManual setting
Welding Thickness(mm)2-50
Protection ClassIP21S
Insulation GradeF
Dimensions(mm)840x460x810
Net Weight(Kg)220
